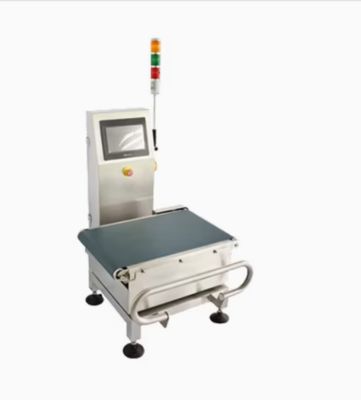

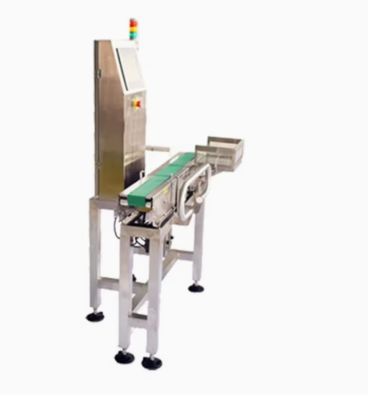

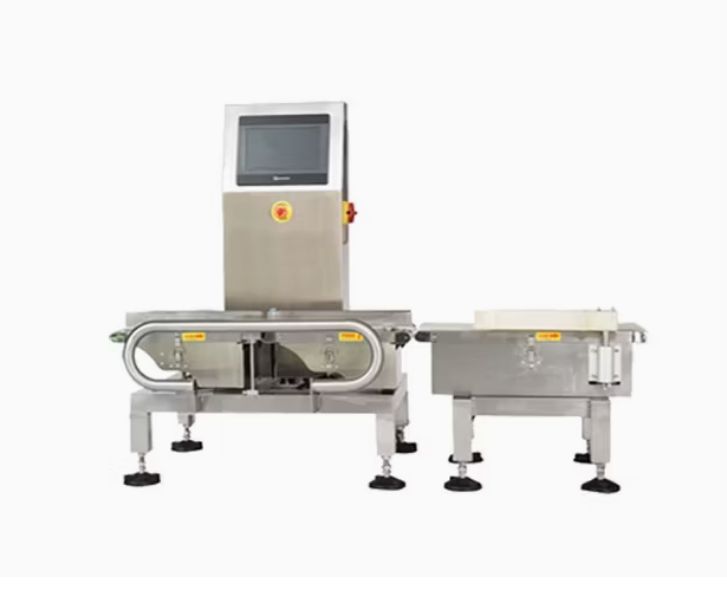

Name: Checkweigher Combinations with Vision Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Checkweigher Combinations with Vision Systems
Availability: InStock

Casa Prodotti Selezionatrice ponderale automatica

Checkweigher Combinations with Vision Systems

Dettagli:

Luogo di origine:	Cina
Model Number:	Checkweigher Combinations with Vision Systems

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Packaging Details:	Caron box
Tempi di consegna:	10-30 giorni
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	COMBINAZIONI CONTROLLATORE CON SISTEMI VIDE	Telecamere:	2-8x CMOS industriali (5-20 MP)
Ottica:	Lenti telecentrici (ingrandimento 0,1-0,5x)	illuminazione:	Array LED a più angolo (RGB/W/UV/IR)
Frame rate:	Fino a 300 fps (dipendente dal prodotto)	Risoluzione:	0,001 g
Misurazione dimensionale:	± 0,05 mm	Verifica del colore:	150ppm
Difetti di superficie:	Difetti da 0,1 mm	Verifica dell'etichetta:	300ppm
Presenza/assenza:	500ppm	Capacità:	0,1 g-25 kg
Precisione:	± 0,05% fs	Velocità:	Fino a 600ppm
Evidenziare:	Mettler Toledo checkweigher with X-ray , checkweigher inspection combination load cell , X-ray inspection checkweigher

Checkweigher Combinations with Vision Systems

Key Specifications

Attribute	Value
Cameras	2-8x industrial CMOS (5-20MP)
Optics	Telecentric lenses (0.1-0.5X magnification)
Lighting	Multi-angle LED arrays (RGB/W/UV/IR)
Frame Rate	Up to 300fps (product-dependent)
Resolution	0.001g
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
Capacity	0.1g-25kg
Accuracy	±0.05% FS
Speed	Up to 600ppm

System Overview

This advanced system combines high-precision dynamic weighing with multi-camera vision inspection for comprehensive quality control.

Machine Architecture

Modular Design: Integrated weighing and vision inspection system
Structural Components:
- Aluminum/stainless steel hybrid frame (Grade 304)
- Compact footprint: 1800(L) × 800(W) × 1400(H) mm
- IP65-rated enclosure (IP69K optional)
- Transparent safety guards with interlock switches

Material Flow Configuration

Infeed Section:
- Servo-driven belt conveyor (5-80 m/min)
- Product singulation system
- Barcode/RFID reader integration point
Inspection Zone:
- High-resolution vision tunnel
- Precision load cell weighing platform
- Multi-spectrum lighting array
Outfeed Section:
- Smart rejection system with 4-way sorting
- Verification sensors for quality tracking

Vision System Specifications

Parameter	Specification
Resolution	0.05mm/pixel at 50m/min
Dimensional Measurement	±0.05mm
Color Verification	150ppm
Surface Defects	0.1mm defects
Label Verification	300ppm
Presence/Absence	500ppm
