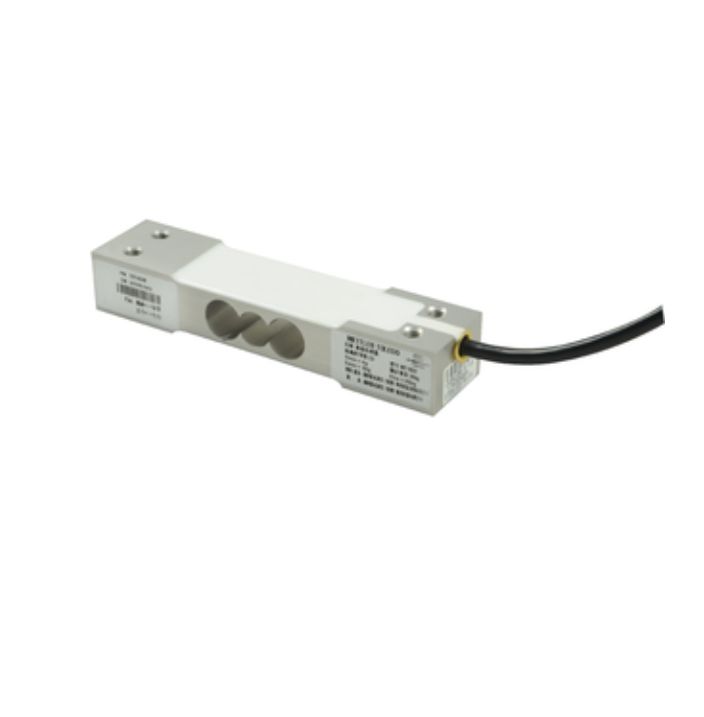

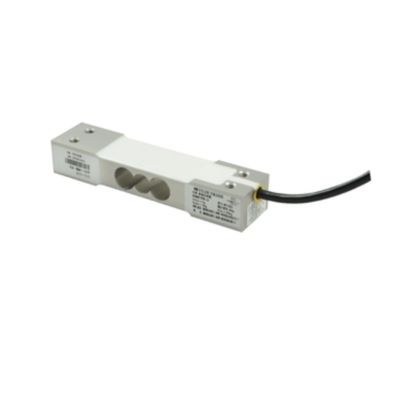

Name: Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Cella di carico MT1022-30kg 3m
Availability: InStock

Casa Prodotti

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Dettagli:

Luogo di origine:	CINESE
Marca:	Mettler Toledo
Numero di modello:	Cella di carico MT1022-30kg 3m

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	66 libbre (30 kg)
Materiale:	di alluminio, passivato	Metrologia:	NTEP III 5.000d OIML C3
Accuratezza:	Norme	Grado di protezione:	IP67
Dimensione piattaforma (Lu x La):	350 millimetri x 350 millimetri	Connettività:	Analoghi
Cavo:	3 m
Evidenziare:	MT1022 load cell sensor 20kg , industrial scale load cell , digital scale load cell with warranty

Load Cell Sensor MT1022 20kg – Ideal for Industrial and Digital Scales

Key Features

High-performance single point load cell with off-center compensation
Metrology approvals including OIML and NTEP III 5,000d
Reliable strain gauge technology for long-term durability
ATEX Zone 1/21/2/22 approvals for hazardous areas
IP67 protection rating for harsh environments

Product Description

The MT1022 compression weigh module is designed for industrial weighing applications. Its top plate and base plate compress when weight is applied, allowing direct attachment to ground, piers, or structural beams. Ideal for platform scales, tank weighing, and silo applications, this load cell offers capacities from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66 lb (30 kg)
Material	Aluminum, passivated
Material No	72208512
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	10 ft (3 m) PVC

Applications

This compression load cell is specifically designed for small platform applications in industrial and digital scales. Its robust construction and high accuracy make it suitable for:

Industrial platform scales
Truck and railroad track scales
Tank, hopper, and silo weighing systems
Hazardous area applications
