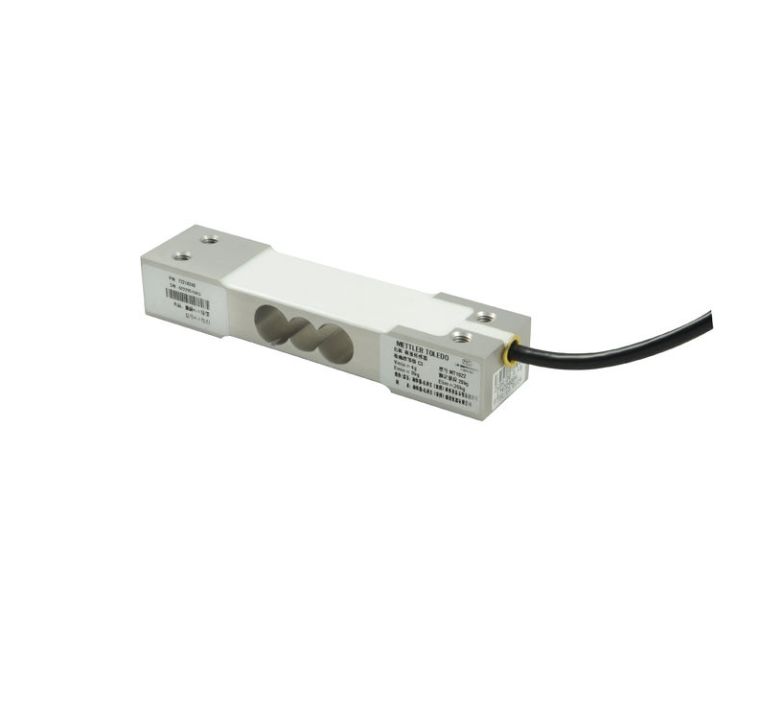

Name: 7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Cella di carico MT1022-7kg 3m
Availability: InStock

Casa Prodotti

7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor

Dettagli:

Luogo di origine:	CINA
Marca:	Mettler Toledo
Numero di modello:	Cella di carico MT1022-7kg 3m

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	15.4 libbre (7 kg)
Materiale:	di alluminio, passivato	Metrologia:	NTEP III 5.000d OIML C3
Accuratezza:	standard	Classificazione di protezione:	Protezione IP67
Dimensione piattaforma (Lu x La):	350 millimetri x 350 millimetri	Connettività:	Analoghi
Cavo:	3 m
Evidenziare:	7kg load cell with 3m cable , MT1022 strain gauge sensor , Mettler Toledo load cell with warranty

7kg Load Cell MT1022 with 3m Cable – Accurate Strain Gauge Sensor

Key Features

High-performance single point load cell with off-center compensation
Metrology approvals including OIML as standard
ATEX Zone 1/21/2/22 approvals for hazardous area usage
Durable aluminum construction with passivated finish
IP67 protection rating for reliable operation in demanding environments

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	15.4 lb (7 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	10 ft (3 m)

Product Description

The MT1022 is a precision compression weigh module designed for small platform applications. Its top plate and base plate compress when weight is applied, allowing direct attachment to ground, piers, or structural beams.

Accuracy

This high-performance single point load cell features off-center compensation to handle platform moments, with standard OIML metrology approvals.

Reliable Strain Gage Technology

Constructed from premium aluminum materials with advanced strain gauge technology for exceptional long-term durability.

Hazardous Area Usage

Includes ATEX Zone 1/21/2/22 approvals as standard, eliminating the need for multiple variations - one solution fits all requirements.
