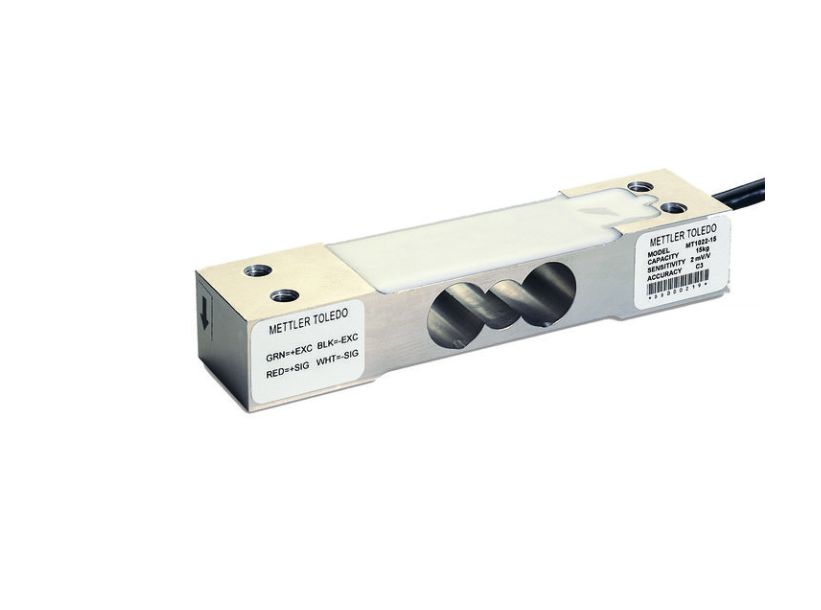

Name: 5kg MT1022 Load Cell with 1m Cable – Ideal for Weighing Systems
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Cella di carico MT1022-5kg 1m
Availability: InStock

Casa Prodotti

5kg MT1022 Load Cell with 1m Cable – Ideal for Weighing Systems

Dettagli:

Luogo di origine:	CINA
Marca:	Mettler Toledo
Numero di modello:	Cella di carico MT1022-5kg 1m

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	5 kg
Materiale:	di alluminio, passivato	Metrologia:	NTEP III 5.000d OIML C3
Accuratezza:	standard	Classificazione di protezione:	Protezione IP67
Dimensione piattaforma (Lu x La):	350 millimetri x 350 millimetri	Connettività:	Analoghi
Cavo:	PVC
Evidenziare:	5kg MT1022 load cell , load cell with 1m cable , Mettler Toledo weighing system

5kg MT1022 Load Cell with 1m Cable – Ideal for Weighing Systems

Product Overview

A high-performance compression weigh module designed for precise measurement in industrial weighing applications. The MT1022 load cell features a top plate and base plate that compress under weight, allowing direct attachment to ground, piers, or structural beams. Ideal for platform scales, tank weighing, and hopper/silo applications with capacities ranging from 3 kg to 300 tons.

Key Features

Accuracy

High-performance single point load cell with off-center compensation for platform moments. Includes OIML metrology approvals as standard.

Reliable Strain Gage Technology

Manufactured with premium aluminum materials and advanced strain gage technology for exceptional long-term durability.

Hazardous Area Usage

Includes ATEX Zone 1/21/2/22 approvals as standard - no need for special options or variations.

Technical Specifications

Product	Mettler Toledo Load Cell
Maximum Capacity	11 lb (5 kg)
Material	Aluminum, passivated
Material No	71201826
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	350 mm x 350 mm
Connectivity	Analog
Cable	PVC

Applications

Small platform scales
Industrial weighing systems
Tank, hopper and silo weighing
Hazardous area installations
Precision measurement applications
