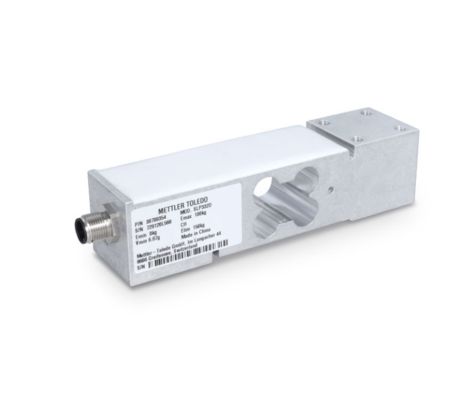

Name: 100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Cello di carico SLP332D-IOL-100kg C3/5k
Availability: InStock

Casa Prodotti

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Cello di carico SLP332D-IOL-100kg C3/5k

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	220 libbre (100 kg)
Materiale:	di alluminio, passivato	Metrologia:	NTEP III 5.000d OIML C3
Accuratezza:	Standard	Grado di protezione:	IP67
Approvazione per ambienti pericolosi:	ATEX, FM	Criticità:	Standard
Dimensione piattaforma (Lu x La):	400 mm x 400 mm	Connettività:	Integrato
Evidenziare:	100kg IO-Link load cell , digital force sensor for industrial weighing , SLP332D-IOL load cell with warranty

100kg SLP332D-IOL Load Cell – IO-Link C3/5k Digital Force Sensor for Industrial Weighing

Key Features:

Direct PLC connectivity via IO-Link interface
Quick installation with standard cables and connectors
Smart5™ alarms and condition monitoring
NTEP III 5,000d and OIML C3 certified
IP67 protection rating for harsh environments

Product Description

A high-performance compression weigh module designed for industrial applications where its top plate and base plate are compressed when weight is applied. This load cell can be directly attached to the ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	220 lb (100 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Hazardous Approval	ATEX, FM
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Integrated

Advanced Features

Integrated PLC Connectivity

The SLP33xD-IOL load cells connect directly to any automation systems via IO-Link, eliminating the need for additional electronic units.

Quick Installation

Standard cables and connectors reduce installation complexity. Factory calibration ensures immediate startup and operation.

Smart5™ Alarms and Condition Monitoring

Continuous condition monitoring with alarms according to NAMUR NE 107 standards results in higher machine uptime and increased productivity.
