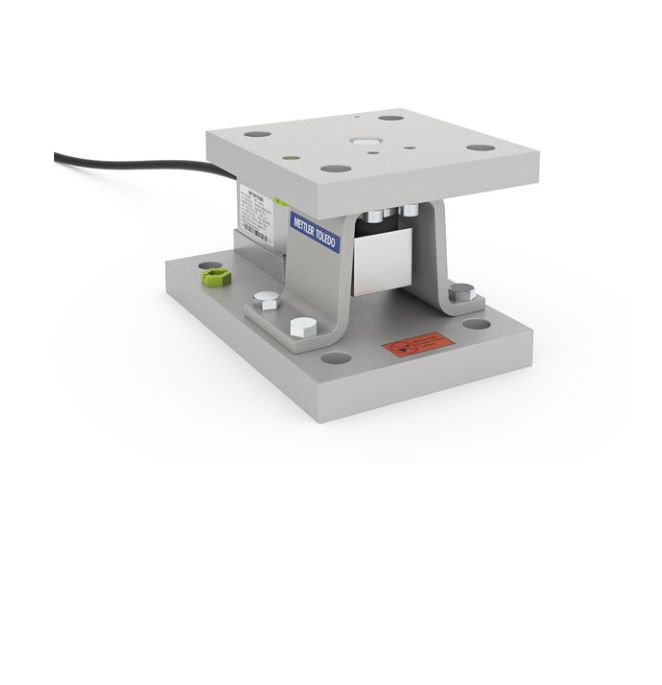

Name: 110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWB405 220kg 5m SS
Availability: InStock

Casa Prodotti

110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWB405 220kg 5m SS

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 Set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	250 libbre (110 kg)
Materiale:	la polvere ha ricoperto il acciaio al carbonio	metrologia:	OIML C3, NTEP III 5M
Cella di carico:	SLB415	Precisione:	Norme
Grado di protezione:	IP68, NEMA 6	Ambiente / Materiale:	Acciaio normale / acciaio al carbonio
Approvazione pericolosa:	ATEX, FM	Criticità:	Standard
Cavo:	5 m.
Evidenziare:	110kg carbon steel load cell , SWB405 weighing module with cable , platform scale load cell sensor

110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales

Product Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	250 lb (110 kg)
Material	Powder Coated Carbon Steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLB415
Accuracy	Standard
Protection Rating	IP68, NEMA 6
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	5 m

Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Key Features

All Safety on Board: Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.
Easy Integration: SafeLock™ feature is built into SWB405 MultiMount™ weigh modules to make installation easier with all components locked in ideal initial positions.
Reliable Weighing: The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.

Technical Specifications

Material	Powder Coated Carbon Steel
Material No	30801027
Maximum Capacity	250 lb (110 kg)
Protection Rating	IP68 NEMA 6
Environment / Material	Normal / Carbon Steel
Hazardous Approval	ATEX FM
Load Cell	SLB415
Accuracy	Standard
Metrology	OIML C3, NTEP III 5M
