Name: 30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWC415 PM SS 15t
Availability: InStock

Casa Prodotti

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWC415 PM SS 15t

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 Set
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 set al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	66,000 lb (30.000 kg)
Materiale:	Zinchi l'acciaio placcato	Metrologia:	OIML C3, NTEP IIIL 10,000
Cella di carico:	0782/GD	Accuratezza:	Norme
Grado di protezione:	IP68/69k	Ambiente / Materiale:	Acciaio normale / acciaio al carbonio
Approvazione pericolosa:	ATEX, FM IEC Ex	Criticità:	Norme
Cavo:	13 m.
Evidenziare:	carbon steel weigh module , heavy-duty load cell system , Mettler Toledo weigh module

30t SWC415 PM CS Weigh Module – Carbon Steel Heavy-Duty Load Cell System

Key Features

Cost Efficient: Economical solution with highly accurate, fully approved stainless load cells suitable for diverse applications
Safety & Protection: Features 360-degree self-checking, dual lift-off protection, hazardous area approvals, and IP68/IP69K-rated load cell
Ease of Installation: Lightweight, low-profile design with SafeLock technology for secure alignment during installation

Product Description

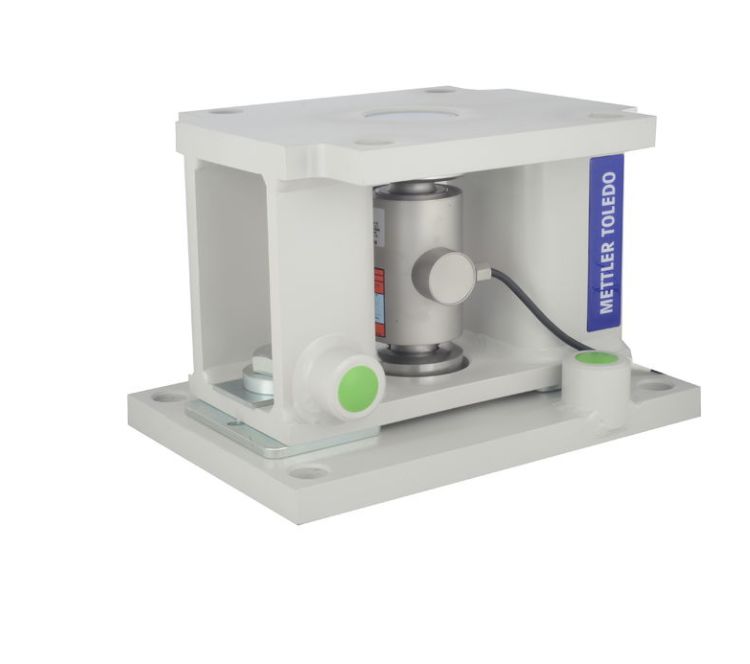

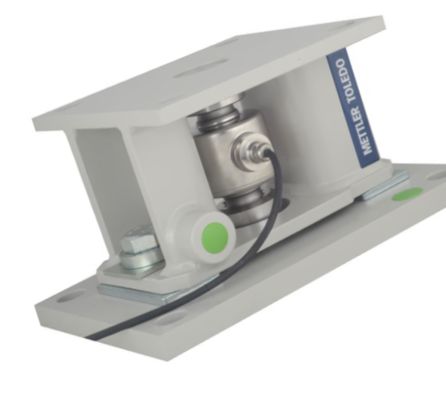

The 30t SWC415 PM CS compression weigh module is engineered for heavy-duty industrial applications. Its design allows the top plate and base plate to compress when weight is applied, enabling direct attachment to ground surfaces, piers, or structural beams. This system is ideal for large-scale weighing applications including truck scales, railroad track scales, and tank/hopper/silo weighing systems, with capacity ranges from 3 kg to 300 tons.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	66,000 lb (30,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM IEC Ex
Criticality	Standard
Cable	13 m
