Name: 100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWC615 PM SS 90T S3A
Availability: InStock

Casa Prodotti

100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWC615 PM SS 90T S3A

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 SET
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 messo al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	220100 000 kg
materiale:	Acciaio dolce zincato	metrologia:	OIML C3, NTEP IIIL 10,000
Cella di carico:	0782/GD, cavo di 13 m	Precisione:	standard
Classificazione di protezione:	IP68/69k	Ambiente / Materiale:	Acciaio normale / acciaio al carbonio
Approvazione pericolosa:	ATEX, FM	Criticità:	standard
Evidenziare:	100 ton carbon steel load cell , industrial weighing load cell module , SWC515 construction load cell

100 Ton SWC515 Carbon Steel Construction Load Cell Module for Industrial Weighing

Key Features

Multi-purpose design: Suitable for static & dynamic tanks, hoppers, mixers & conveyors
Safety features: 360° self-checking, dual lift-off & down-stops, ground strap
Hazardous approvals: ATEX and FM certified for safe operation in challenging environments
Easy installation: Lightweight, low profile design with flexible orientation
High protection: IP68/69k rated stainless steel load cell

Product Description

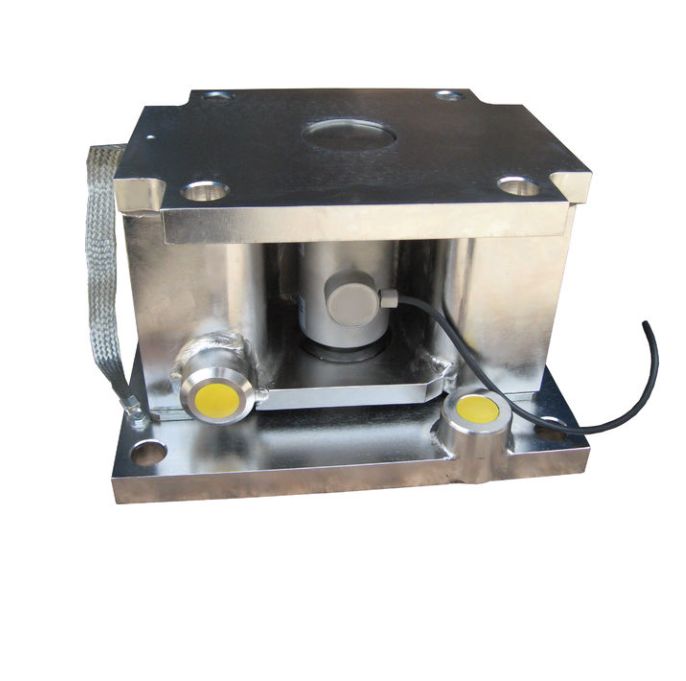

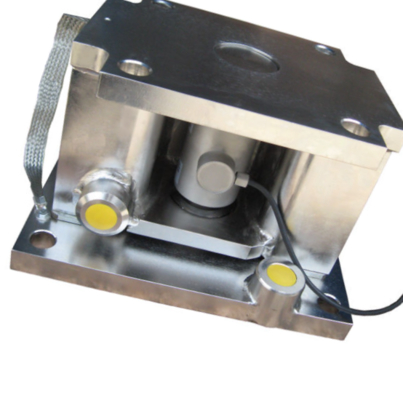

The SWC515 compression weigh module is engineered with a top plate and base plate that compress when weight is applied. Designed for direct attachment to ground surfaces, piers, or structural beams, this module is ideal for large-scale industrial weighing applications.

Common applications include truck scales, railroad track scales, and tank/hopper/silo weighing systems. With a capacity range from 3 kg to 300 tons, these modules provide reliable performance across various industrial weighing needs.

Technical Specifications

Attribute	Specification
Product	Mettler Toledo Load Cell
Maximum Capacity	220,000 lb (100,000 kg)
Material	Mild Steel galvanized
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	0782/GD, 13 m cable
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
