Name: SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWC615-A CS 50t
Availability: InStock

Casa Prodotti

SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWC615-A CS 50t

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 SET
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di Caron
Tempi di consegna:	10-30 giorni
Capacità di alimentazione:	2000 messo al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	110.000 lb (50.000 kg)
Materiale:	Zinchi l'acciaio placcato	metrologia:	OIML C3, NTEP IIIL 10,000
Cella di carico:	POWERCELL PDX	Precisione:	standard
Classificazione di protezione:	IP68/69k	Ambiente / Materiale:	Acciaio inossidabile
Approvazione pericolosa:	ATEX, FM	Criticalità:	condizioni il controllo
Evidenziare:	carbon steel load cell , heavy-duty weighing module , industrial load cell with warranty

SWC615-A CS 50t Weighing Module – Carbon Steel Load Cell for Heavy-Duty Industrial Weighing

Multi-Purpose, Feature Packed Weigh Module

Multi Purpose - Always Suitable: For static & dynamic tanks, hoppers, mixers & conveyors. High accuracy fully approved stainless hermetic load cell fits all applications.
No Compromise on Safety: Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells.
Condition Monitoring: Monitor single load cells for overload, temperature, zero drift etc. to enable proactive maintenance.

Product Description

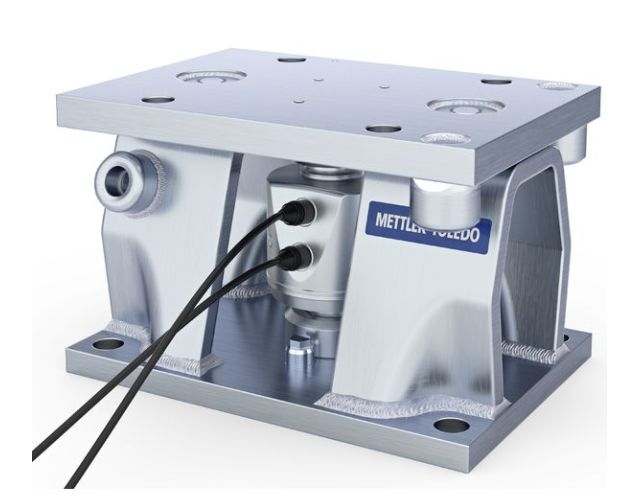

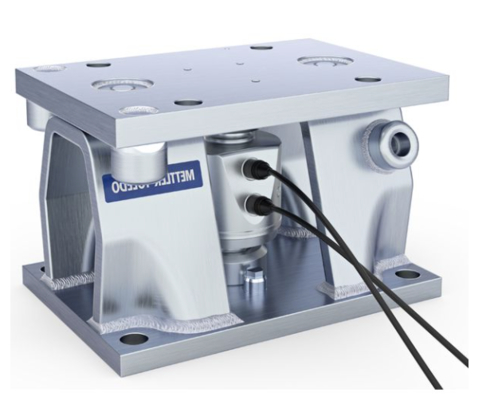

The SWC615-A CS 50t compression weigh module is designed with top and base plates that compress when weight is applied. It can be directly attached to the ground, piers, or structural beams. Ideal for use in multiples under large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	110,000 lb (50,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP IIIL 10,000
Load Cell	POWERCELL PDX
Accuracy	Standard
Protection Rating	IP68/69k
Environment / Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
