Name: 200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWC515 PM CS 200t
Availability: InStock

Casa Prodotti

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWC515 PM CS 200t

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 SET
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 messo al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	440,000 libbre (200.000 kg)
Materiale:	Acciaio al carbonio	metrologia:	Accuratezza 0,05%
Cella di carico:	0782/GD	Accuratezza:	Basso
Classificazione di protezione:	IP68/69k	Ambiente / Materiale:	Acciaio normale / acciaio al carbonio
Approvazione pericolosa:	ATEX, FM	Criticità:	standard
Cavo:	66 piedi (20 m)
Evidenziare:	200t compression load cell , carbon steel weighing module , industrial load cell with warranty

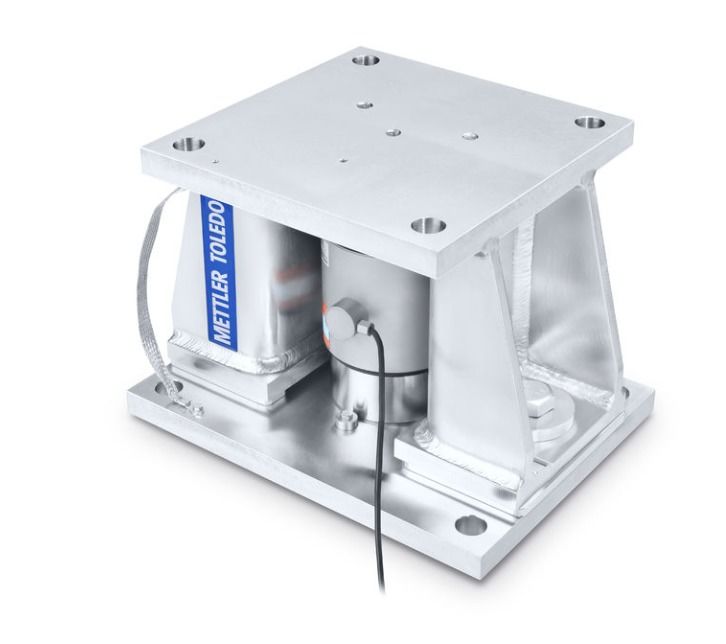

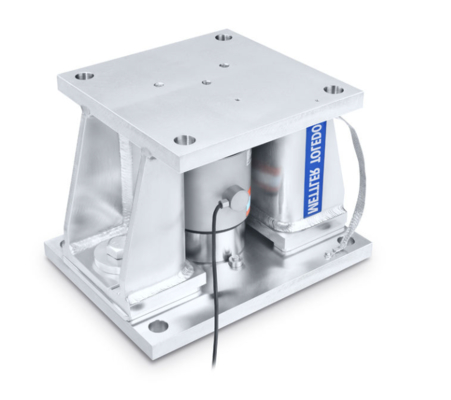

200t Weighing Module SWC515-PM CS Industrial Compression Load Cell in Carbon Steel

Product Overview

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing systems. Capacity range from 3 kg to 300 tons.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, dual lift-off & down-stops, ground strap, hazardous approvals & IP68 stainless load cell
Easy Installation: Low profile design with alignment and rigid locking mechanism, installable with or without load cell

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	440,000 lb (200,000 kg)
Material	Carbon Steel
Metrology	Accuracy 0.05%
Load Cell	0782/GD
Accuracy	Low
Protection Rating	IP68/69k
Environment/Material	Normal/Carbon Steel
Hazardous Approval	ATEX, FM
Criticality	Standard
Cable	66 ft (20 m)
