Name: 15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: Modulo di pesatura SWC615-A CS 15t
Availability: InStock

Casa Prodotti

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

Dettagli:

Luogo di origine:	Cina
Marca:	Mettler Toledo
Numero di modello:	Modulo di pesatura SWC615-A CS 15t

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1 SET
Prezzo:	Negoziabile
Imballaggi particolari:	Scatola di carone
Tempi di consegna:	10-30days
Capacità di alimentazione:	2000 messo al mese

Contatto

Descrizione di prodotto dettagliata

Prodotto:	Cella di carico Mettler Toledo	Capacità massima:	33.000 libbre (15.000 kg)
Materiale:	Zinchi l'acciaio placcato	metrologia:	OIML C3, NTEP III 5M
Cella di carico:	SLC611D	Precisione:	standard
Classificazione di protezione:	IP68/69k	Ambiente / Materiale:	Acciaio inossidabile
Approvazione pericolosa:	ATEX, FM	Criticità:	Monitoraggio delle condizioni
Evidenziare:	carbon steel weigh module , industrial load cell , SWC615-A weigh module

15t SWC615-A CS Weigh Module - Robust Carbon Steel Load Cell for Industrial Applications

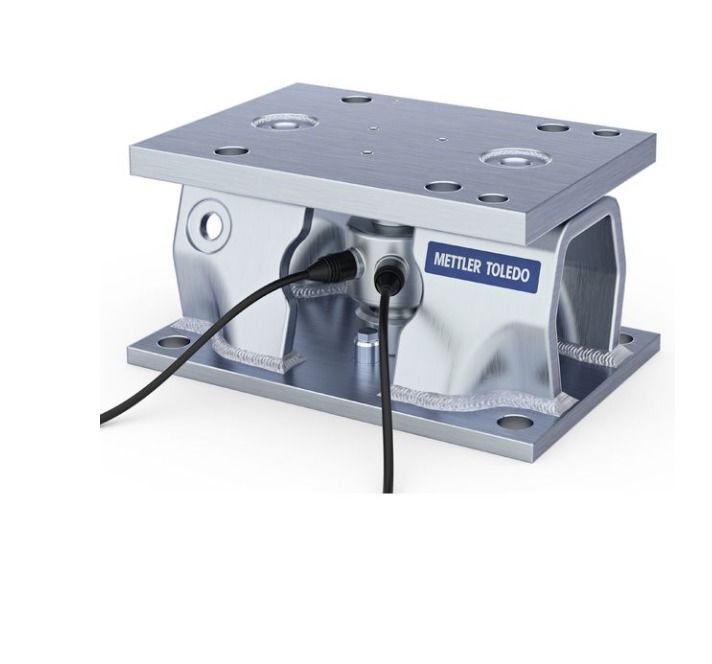

A compression weigh module designed for industrial applications where its top plate and base plate compress under load. Ideal for direct attachment to ground, piers, or structural beams. Commonly used in multiples for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing.

Key Features

Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors with high accuracy stainless hermetic load cell
Enhanced Safety: Features 360° self-checking, lift-off & down-stops protections with hazardous approvals and IP68 load cells
Condition Monitoring: Tracks single load cells for overload, temperature, zero drift to prevent system shutdowns or incorrect measurements

Technical Specifications

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	33,000 lb (15,000 kg)
Material	Zinc plated steel
Metrology	OIML C3, NTEP III 5M
Load Cell	SLC611D
Accuracy	Standard
Protection Rating	IP68/69k
Environment/Material	Wash-down / Stainless Steel
Hazardous Approval	ATEX, FM
Criticality	Condition monitoring
